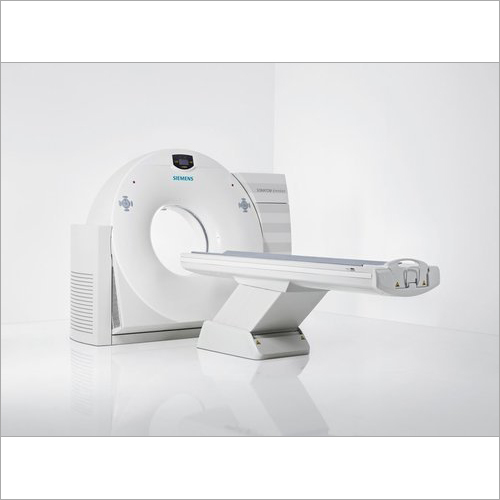

Siemens Sensation 64 Slice CT Scanner

27.00 - 29.00 INR/Set

Get a Price/Quote

Product Details:

Accuracy Submillimeter
Height 1800 mm
Dimension (L*W*H) 2300mm x 1350mm x 1800mm
Treatment Type Non-invasive diagnostic imaging
Application Medical Imaging, Radiology
Phase Single Phase
Weight Approx. 1550 kg
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Siemens Sensation 64 Slice CT Scanner Price And Quantity

Minimum Order Quantity 1 Set
Price Range 27.00 - 29.00 INR/Set

Patient Positioning Automatic and Manual
Cooling System Liquid cooled
Detector Rows 64
X-ray Tube Capacity 8 MHU
Connectivity DICOM, PACS compatible
Service Support Remote diagnostics, online support
Spatial Resolution Up to 15 lp/cm
Power Failure Protection Built-in UPS
User Interface Multi-language, touch navigation
Table Load Capacity Up to 200 kg
Bore Size 78 cm
Image Reconstruction Speed Up to 20 images/sec
Noise Reduction Advanced iterative reconstruction
Year of Launch 2004
Gantry Rotation Speed 0.33 seconds/revolution
Software Features syngo CT applications, dose management, ISRA adaptive reconstruction
Upgradeable Upgradeable to higher slice configuration
Maximum Scanning Speed Up to 200 slices/sec

Siemens Sensation 64 Slice CT Scanner Product Specifications

Application Medical Imaging, Radiology
Phase Single Phase
Weight Approx. 1550 kg
Suitable For Hospitals, Diagnostic Centers
Dimension (L*W*H) 2300mm x 1350mm x 1800mm
Display 17-inch LCD Touchscreen
Accuracy Submillimeter
Height 1800 mm
Power Source Electric
Treatment Type Non-invasive diagnostic imaging
Properties 64-slice acquisition, high-speed gantry, advanced dose reduction technologies
Product Type CT Scanner
Function Whole-body imaging, cardiac scans, neuro imaging, vascular imaging
Humidity Range 20% - 80% RH
Shape Rectangular Gantry with Circular Bore
Storage Capacity Up to 10,000 images
Display Type Touchscreen / Monitor
Power 7 kVA
Voltage 220-240 V
Automation Grade Fully Automatic
Temperature Range 15C to 30C
Frequency 50/60 Hz
Material Metal & Advanced Composite
Color Code Siemens White/Grey
Use Computed Tomography scanning, diagnostic imaging

Patient Positioning Automatic and Manual
Cooling System Liquid cooled
Detector Rows 64
X-ray Tube Capacity 8 MHU
Connectivity DICOM, PACS compatible
Service Support Remote diagnostics, online support
Spatial Resolution Up to 15 lp/cm
Power Failure Protection Built-in UPS
User Interface Multi-language, touch navigation
Table Load Capacity Up to 200 kg
Bore Size 78 cm
Image Reconstruction Speed Up to 20 images/sec
Noise Reduction Advanced iterative reconstruction
Year of Launch 2004
Gantry Rotation Speed 0.33 seconds/revolution
Software Features syngo CT applications, dose management, ISRA adaptive reconstruction
Upgradeable Upgradeable to higher slice configuration
Maximum Scanning Speed Up to 200 slices/sec

Siemens Sensation 64 Slice CT Scanner Trade Information

Supply Ability 2 Set Per Month
Delivery Time 3 Months

Product Description

Specification

Brand	Siemens
Number Of Slices	64- Slice System
Operation Mode	Automatic
Types	Spiral
Application	Diagnostic Centre, Hospital
Helical Scanning	Yes
Spatial Resolution	30 lp/cm
Pitch	28.2-128 freely selectable
Power	380-480 VAC, 3-phase, 63-111 kVA
Siting Requirements	24 m2 (floor space needed)
Heat Storage	hu (X-ray tube anode) 0.6 MHU with 5 MHU/ min heat dissipation
Heat Dissipation Rate	hu/min (X-RAY TUBE) 5,0,000
Tube Focal Spot	(X-ray tube anode) 0.6 x 0.7, 0.8 x 0.8, 0.8 x 1.2 mm
Scan Fovs	50 cm (Standard); 70 cm (Optional)
Image Reconstruction Matrixes	512 x 512
Reconstruction Time	Per slice, sec 0.06
Kvp range	80,100,120, 140
Scan localizer	Laser

High-Performance Imaging Technology

The Siemens Sensation 64 Slice CT Scanner is equipped with 64 detector rows and rapid gantry rotation, enabling comprehensive body imaging at high speeds. Designed for efficiency, it delivers up to 200 slices per second and reconstructs images at a rate of 20 per second, ensuring diagnostic confidence. The scanner integrates advanced noise reduction and ISRA adaptive reconstruction, providing clinicians with high-resolution images for accurate diagnosis.

Enhanced Patient Comfort and Safety

Patient experience is prioritized with a spacious 78 cm bore and a table that supports up to 200 kg, making scans comfortable for a wide range of individuals. The scanner features dose management systems to minimize radiation exposure, and automated as well as manual positioning for quick, safe patient alignment. Its fully automatic operation streamlines workflow, while the robust liquid-cooled X-ray tube ensures lasting performance.

Comprehensive Software and Connectivity

Leveraging Siemens renowned syngo CT applications, this scanner simplifies workflow with multi-language, touch navigation, and seamless DICOM and PACS connectivity for storage and sharing. Remote diagnostics, power failure protection, and upgradable hardware underscore its reliability and adaptability. With the capacity to store up to 10,000 images, it meets the dynamic needs of busy radiology environments.

FAQs of Siemens Sensation 64 Slice CT Scanner:

Q: How does the Siemens Sensation 64 Slice CT Scanner improve diagnostic imaging?

A: The scanner provides up to 200 slices per second with advanced spatial resolution of up to 15 lp/cm, ensuring rapid, submillimeter accuracy for whole-body, cardiac, neuro, and vascular imaging. Enhanced features such as ISRA adaptive reconstruction and advanced noise reduction contribute to clearer images, supporting confident diagnosis.

Q: What are the key benefits of the large bore size and table load capacity?

A: The 78 cm bore and 200 kg table load foster comfortable scanning for patients of various sizes and conditions. This design accommodates claustrophobic, pediatric, or bariatric patients more easily, streamlining workflow and improving the overall patient experience.

Q: When can automated patient positioning be used, and what advantages does it offer?

A: Automated positioning can be engaged before each scan to ensure precise and consistent patient alignment. This process reduces scanning time, minimizes repetition, and helps maintain accuracy, thereby enhancing workflow efficiency and patient throughput.

Q: Where does data from the CT scans get stored and how can it be accessed?

A: Scanned images and data can be stored locally, with a capacity of up to 10,000 images, and are accessible through the 17-inch LCD touchscreen interface. Additionally, DICOM and PACS compatibility allows for easy transfer, storage, and sharing across hospital networks.

Q: What is the process for dose management and how does it benefit patients?

A: The built-in dose management systems automatically adjust radiation dose parameters based on each scan, ensuring minimal exposure while maintaining image quality. This safeguards patient health and meets regulatory standards for radiation safety.

Q: How is the Siemens Sensation 64 maintained and supported post-installation?

A: Ongoing support is available through remote diagnostics, online technical assistance, and Siemens global service network. The scanners built-in UPS also provides power failure protection to prevent data loss during outages.

Q: What upgrades are available for the Siemens Sensation 64 Slice CT Scanner?

A: The system is designed to be upgradeable, allowing facilities to enhance processing capabilities, increase slice counts, or integrate new software applications. This ensures long-term adaptability as technology and clinical needs evolve.
